商品介紹
1MHz高頻羅氏線圈

1MHz高頻羅氏線圈

Clamp-on Flexible Rogowski coil Current Transformer has been designed for accurate measurement of wide AC current, pulsed DC or distorted waveforms. It may be used to measure AC current over a wide dynamic range and from 25Hz to 200kHz~1Mhz.


開口式電流互感器(Split-Core CT)

Split-Core Current Transformer
Attached: Echun All product catalogue.pdf

The Series are split-core current transformers.
The CT can be mounted to existing panels, such as
control centers or load centers, to measure or
monitor wattage. These CTs can be mounted
without removing existing cables for easier
installation
APPLICATION
● Current Measurement
● Electrical load monitoring
●● Energy and sub-metering products

Energy and sub-metering products
● Network equipment
● Instruments and sensors
● Control systems
● Go GREEN initiatives

SPECIFICATIONS
● Standard Input Current 0~2500A
● Frequency 50Hz — 400Hz
● Custom design Turns-Ratio
available
● Standard accuracy 0.5,1
● Clamping voltage on selected
models
● ANSI C57.13 and IEC60044-1

Attached: ALL Split-core CT data sheet.pdf

Attached: YYTL ECS06-10-16-24-36.pdf

Attached: YYTL ECS19-40-50-90-120 S Series.pdf

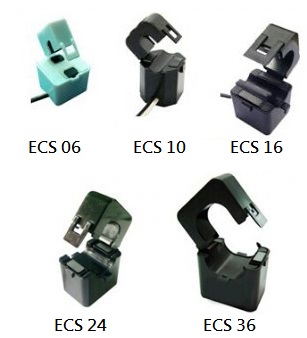

鈕扣式 Split-Core Current Transformer
Attached: YYTL ECS06.pdf
Attached: YYTL ECS10.pdf
Attached: YYTL ECS16.pdf
Attached: YYTL ECS24.pdf
Attached: YYTL ECS36.pdf

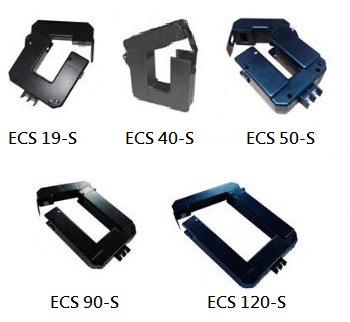

方型 Split-Core Current Transformer
Attached: YYTL ECS-16S.pdf
Attached: YYTL ECS-19S.pdf
Attached: YYTL ECS-40S.pdf
Attached: YYTL ECS-50S.pdf
Attached: YYTL ECS-90S.pdf
Attached: YYTL ECS-120S.pdf

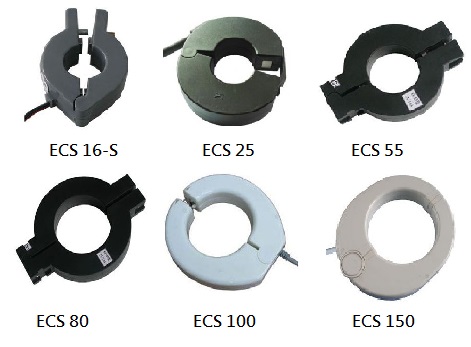

圓型 Split-Core Current Transformer
Attached: YYTL ECS25.pdf
Attached: YYTL ECS55.pdf
Attached: YYTL ECS-80.pdf
Attached: YYTL ECS-100.pdf
Attached: YYTL ECS150.pdf

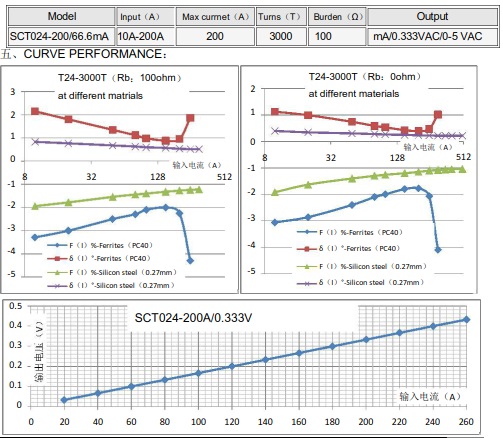

SCT 開口式CT

SCT 開口式CT

Split Core Transformer

SCT -010e


SCT -016e

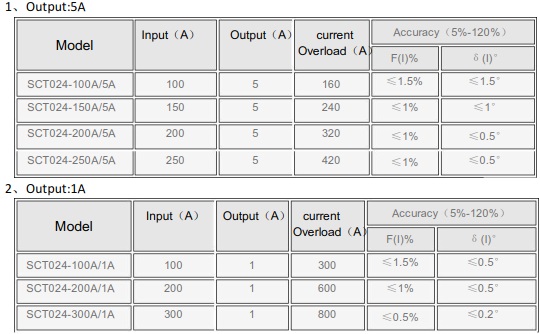

SCT -024e

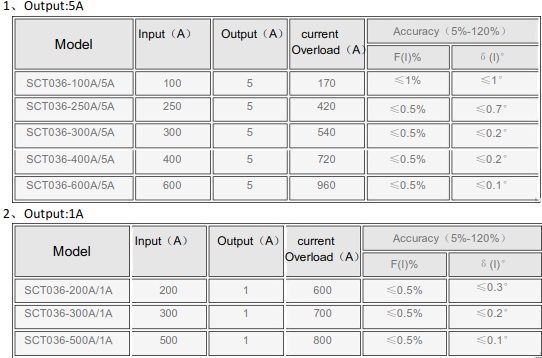

SCT-036e





SCT -024Be



SCT -036Be

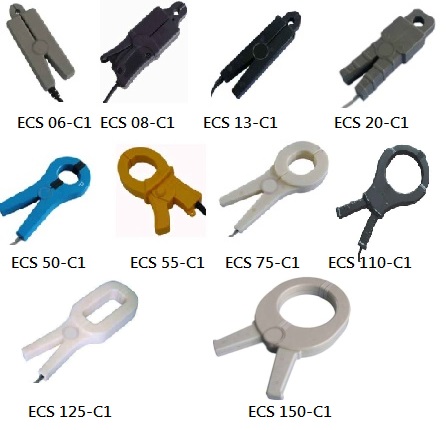

鉗式電流互感器(Clamp-on current transformer)

The ECS-C Series . ECS 08,13,20,50.55.70.110.125.150 are Clamp-on current transformers.The CT can bemounted to existing panels, such as control centers or load centers,to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation

CL:0.1,0.2,0.5

Attached: ALL Clamp-on CT data sheet.pdf

詳細規格如下

Attached: YYTL ECS08-C1.pdf
Attached: YYTL ECS13-C1.pdf
Attached: YYTL ECS20-C1.pdf
Attached:
YYTL ECS25C.pdf
Attached: YYTL ECS50-C1.pdf
Attached: YYTL ECS55-C1.pdf
Attached: YYTL ECS70-C1.pdf
Attached: YYTL ECS125-C1.pdf
Attached: YYTL ECS150-C1.pdf
Attached: YYTL ECS110-C1.pdf

Iprobe HINOKI 9660與福祿克電流鉗

Iprobe HINOKI 9660與福祿克電流鉗

Iprobe 005  : input 5A
Iprobe 100  : input 100A
Iprobe 200  : input 200A


電能品質分析互感器
高檔諧波電流鉗 日製9660與福祿克電流鉗

聯繫客服價格從優!專業廠家生產,相容日本(HIOKI)日置9661/9660(Fluke)福祿克I200S/I400 應用: 1)用於電能品質分析儀電流探測傳感,滿足A級表要求; 2)示波器、數位表、資料記錄儀的電流探測傳感;3)變頻、逆變電力系統諧波測量;4)用於電能、功率因數修正裝置。



特點
 ● 外觀精美,結構穩定;
 ● 精度高、線性度優、抗幹擾能力強
 ● 諧波測試精度高。
應用
 ● 用於電能品質分析儀電流探測傳感,滿足A級表要求;
 ● 示波器、數位表、資料記錄儀的電流探測傳感;
 ● 用於變頻、逆變電力系統諧波測量;
 ● 用於電流、電能、功率因數修正裝置。
說明
 ● 測試電流範圍:0.1A-200A
 ● 最大連續一次電流260A
 ● 輸出信號 mV/A200A檔),10mV/A20A檔)
 ● 幅值精度:±0.% rdg.±0.02%f.s. (f.s.:5 A, 45Hz - 66Hz, 導線居中)
 ● 幅值頻率特性:±1% (45 Hz - 5 kHz) ( 偏離精度
 ● 相位精度:±0.5°(10~100%I1n(45 Hz - 5 kHz)
 ● 導體影響:±0.5%(偏離中心)
 ● 工作環境:0 to 50°C (32 - 122°F), 80%RH (無冷凝物),海拔2000m
 ● 介電強度:3000 V AC rms /持續15秒(電路—鐵芯,鐵芯—外殼)
 ● 安全標準:IEC61010 - 2 -0322012 CAT III,污染度II
 ● 鉗口尺寸:24mm
 ● 體積:約64W x 130H x 26D mm(不包括突出部分)
 ● 輸出線:3m長護套絕緣線,末端連接BNC連接器。
 ● 環保:產品符合RoHS環保要求。

三檔可調電流鉗 CTC1535

三檔可調電流鉗 CTC1535

高檔電流鉗 開口示波器用高頻電流鉗 三檔可調電流鉗 CTC1535

特色高檔產品,適用於大多數福祿克FLUKE萬用表,或任何可接受 4mm 帶護罩香蕉插頭且具有交流毫安培量程的電流測量設備,可做成BNC插頭直接插入示波器使用,具有10A/100A/1000A三檔可調功能,相容ETA5302

特點
 ● 外觀精美
 ● 夾鉗設計,不必斷開被測電路使用輕便安全
 ● 可以輸出電流信號或電壓信號
 應用
 ● 電流、電能、功率因數修正裝置
 ● 工業控制裝置
 ● 示波器和諧波分析儀
 說明
 ● 測試電流範圍:0.1A-1000A
 ● 最大一次電流:2000A2秒)
 ● 輸出信號:mA/A mV/A
 ● 工作頻率:50Hz 100kHz
 ● 精度 1%
 ● 工作溫度:-15 to 75
 ● 安全等級:CAT III 600V  安全認證:美國ETL認證
 ● 鉗口窗口: 2.05 inches (52 mm)
 ● 外形尺寸:37in.x 8.50in.x 1.77in (111mm x 216mm x 45mm)
 ● 輸出引線:①1.5m長的RG-58A同軸電纜,末端連接一個絕緣的BNC連接器,可直接連接到示波器上,也可通過PM9081/001 BNC/香蕉適配器連接到萬用表上(適用於輸出電壓信號)。
     1.5m長的RG-58A同軸電纜,末端連接有4mm標準香蕉插頭(適用於輸出電流信號或電壓信號)
 ● 環保:產品符合RoHS環保要求
 ● 認證:產品符合CE要求

25mm 1kHz高頻電流鉗

25mm 1kHz高頻電流鉗

25mm電流鉗 鉗形互感器 開口互感器 小型電流鉗 電流互感器

外殼材料:ABS 樹脂,阻燃等級94V0

測試中線路電壓等級:600Vac(絕緣導線)30Vac(裸露導線)

工作溫度:-25o C to +55o C

絕緣電阻:100 MOhms @ 500Vdc

介質強度:2500V/min

工作頻率:50—1000Hz

環保:符合RoHS環保要求

認證:符合CE要求


4~20mA 開口式電流互感器

ECS-T Series  Current Transducer

Primary Current: 0~2500A

Secondary Output: 4~20mA

Power Supply : 12~24V

Accuracy: 1%

Windows:∅16mm
Application:Mount easy, Current measurement  and monitoring

Customized according to user needs

Attached: All 4-20mA Current transducer data sheet.pdf

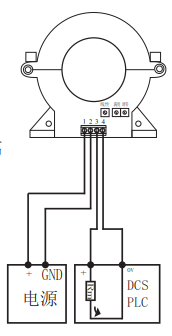

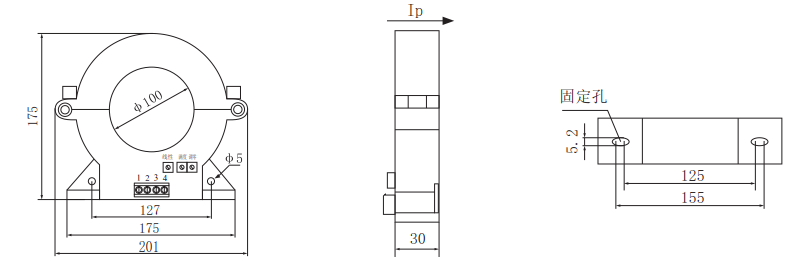

口徑100MM開口式霍爾CT

OP: 4~20mA, CL : 1.0%

DC 霍爾開口式CT



DC Meter

直流互感器

抗直流互感器

The Series are mini-precision current transformers. The CT is Small size, PCB mounting and low cost.


Attached: All DC-immune CTs datasheet.pdf

精密量測互感器(Clamp-On Current Transformer)

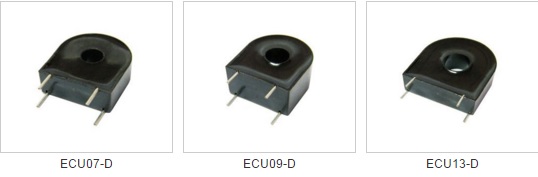

ECU05/07/09/13 系列精密電流互感器


初級額定電流: 0~12A

匝數比: 1:1000/1500/2000/2500

精度等級: 0.1%, 0.2%, 0.5%, 1%

窗口大小:5/7/9/13mm

應用: PCB按裝,用於電流測量或監控

備註:可按客人要求定制特殊規格



ECO06/07/09/13/20/26 系列精密電流互感器


初級額定電流: 0~600A

匝數比: 1:1000/1500/2000/2500

精度等級: 0.1%, 0.2%, 0.5%, 1%

窗口大小:6/7/9/13/20/26mm

應用: 用於電流測量或監控

備註:可按客人要求定制特殊規格

Attached: Al Mini-precision CTs datasheet.pdf
