商品介紹

YONGYEA雷電記錄器LD007

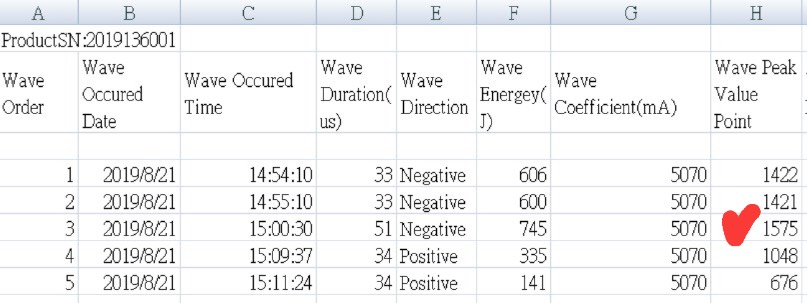

雷電記錄儀LD007是一種新型的記錄雷電波形的儀器,它是基於多年雷電研究經驗而研發出來的。其採用羅氏線圈做為感測器,外形小巧,無飽和,能即時記錄下雷電發生的各種參數,包括發生時間、持續時間、雷電次數、最大值、能量值、方向和波形資料等等。用戶可以通過SD卡、RS485/MODBUS通信或者儀器自帶的液晶屏查看雷電資料和雷電波形

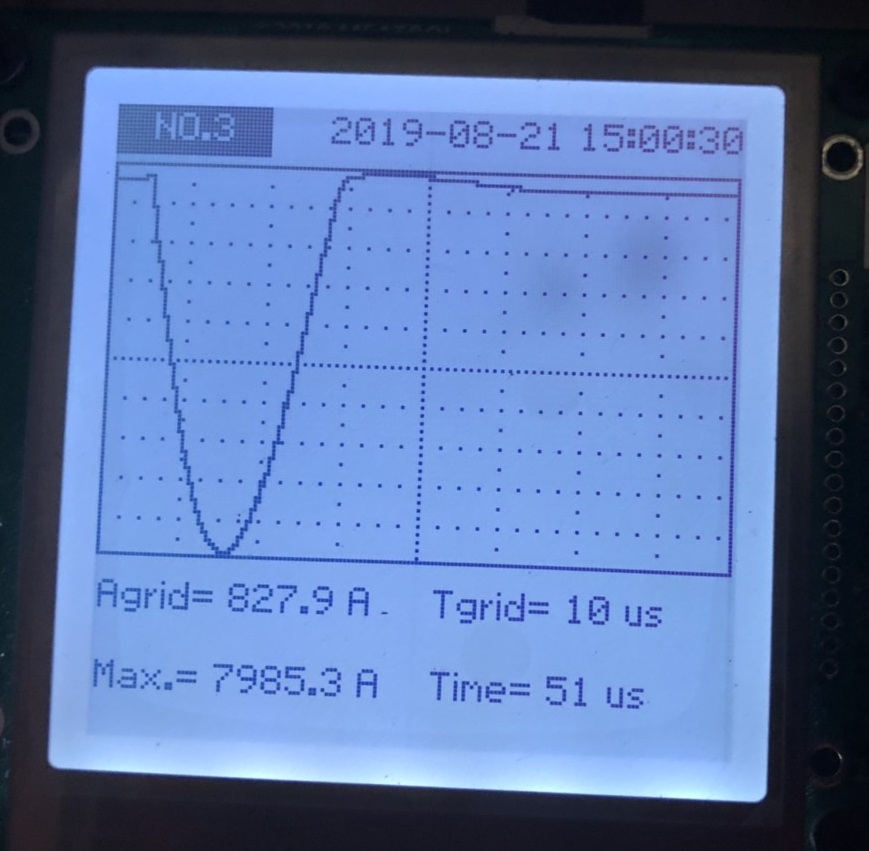

雷電波形


RECORDER

ME-HF Series 雷擊量測系統 (Lighting Measurement System)

ME-HF Series

The ME-HF is functional with Y-FCT Rogowski coil and HF high frequency integrator to provide
professional measurement for lightning current, capacity discharge, pulse and fault current which belong to
high frequency situations with the output of 0-10V peak signal.
It is providing the measurement of all kinds of waveforms like 3/5μs, 8/20μs,10/350μs,frequency
from 1kHz to 500kHz, it also features in direct connection to oscilloscope

Attached: datasheet MEHF for lighting measurement system.pdf



Connection


實測電流波形

H-FCT 雷擊量測裝置

H-FCT 雷擊量測裝置

Attached: datasheet H-FCT for lighting measurement system.pdf


HCT-2簡易雷擊量測裝置


HCT -2 簡易雷擊量測裝置


HCT 為一款經濟型之雷擊電流量測設備, 輸出0~5V ,
可用於避雷針導引線之雷擊電流量測或其他高頻系統的電流量測
Attached: HCT-2 Datasheet .pdf

實測電流波形
