主功能
ØClassA電能質量測量：諧波和間諧波，電壓偏差，頻率偏差，不平衡，波動和閃爍，瞬態干擾，EN50160統計
Ø0.2s級精度：諧波，基波，次諧波能量
Ø高分辨率故障記錄：支持1024點/週期，最小間隔干擾記錄為20us,8GB 記憶體
Ø故障診斷位置：支持電壓暫降源，諧波源，閃爍源，非對稱源位置和電源故障類型診斷
Ø完整的實時數據測量

義大利 彩色觸控 NG-9/96 盤面式三相3迴路電表

技術特點

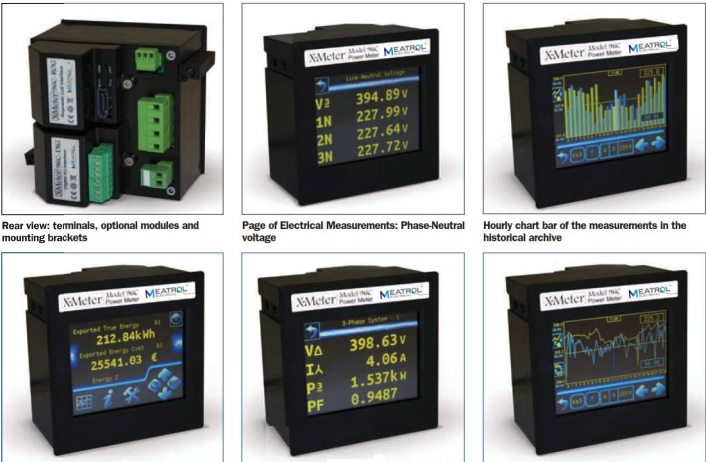

96x96mm多功能儀表，帶有彩色LCD電阻式觸摸屏，三個5A電流輸入和6個通道，用於採集能量數據和其他來源（溫度，數字和模擬信號）。

• • 96 x96 mm的外殼適用於工業部門/大樓的中/低壓電力中心;
  • 圖形顯示：3.5英寸液晶TFT，320x240像素，262k色，帶電阻式觸摸屏，顯示清晰可讀的測量結果;
  • 84個可以設置為零的象限上的功率累加器;
  • 儀器內的溫度探頭;
  • 時鐘和日曆;
  • 串口：RS485;
  • 協議：Modbus。

96x96mm Multifunction meter with Colour LCD resistive touchscreen,
three 1 to 5A current inputs and 6 channels to acquire energy data and
other sources’ (Temperature, digital and analogic signals).
> Bi-directional meter (Imported/delivered energy)
> 50 true value Measurements (RMS) on 4 quadrants
> The 96x96mm, 65mm deep case can be inserted in standard panels.
> Graphic display: 3.5” LCD TFT, 320x240pixel, 262k colors,
with resistive touchscreen, for a clear and readable displaying
of measurements.
> 84 Power Totalizers on 4 quadrants that can be set to zero.
> Temperature probe within the instrument.
> Clock and calendar.

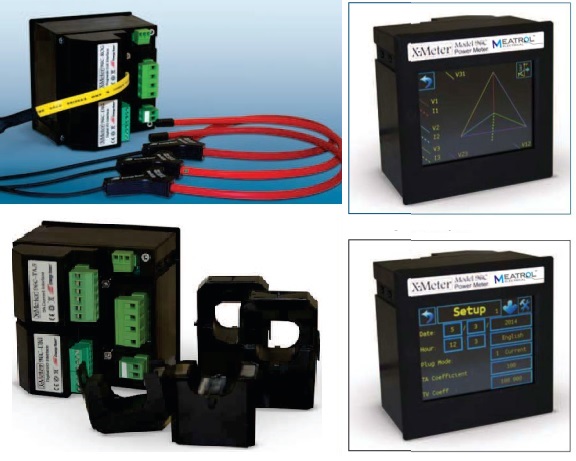

> Current measurement modules available:
- Rogowski flexy sensors Ø from 100 mm
- Split Current Transformers
Ø6 mm - max 10A
Ø16 mm - max 100A
Ø24mm - max 200A
> New Generation sensors
Temperature measurement sensor NG-RTD
Analogic voltage or current Inputs sensor NG-AIN
Digital signal acquisition sensor NG-DIG
> Serial port: RS485
> Protocol: Modbus

List of Measurements
Direct measurements for single-phase
> Phase-neutral voltage L1-N
> Phase-neutral voltage L2-N
> Phase-neutral voltage L3-N
> Phase-phase voltage L1-L2
> Phase-phase voltage L2-L3
> Phase-phase voltage L3-L1
> Line current L1
> Line current L2
> Line current L3
Single-phase derived measurements
> Bi-directional active power L1 (positive=imported)
(Q1 and Q4), negative=exported (Q2 and Q3)
> Bi-directional active power L2 (positive=imported, negative=exported)
> Bi-directional active power L3(positive=imported, negative=exported)
> Bi-directional reactive power L1 (positive=imported (Q1and Q4)
> Bi-directional reactive power L2 (positive=imported)
> Bi-directional reactive power L3 (positive=imported)
> Distorting power L1 (indication of presence of current harmonics)
> Distorting power L2 (indication of presence of current harmonics)
> Distorting power L3 (indication of presence of current harmonics)
> Apparent power L1
> Apparent power L2
> Apparent power L3
> Power factor L1
> Power factor L2
> Power factor L3
Harmonics and THD
> Harmonics up to the 15°, both Voltage and Current
> Voltage and Current THD
Main measurements of three-phase system
> Three-phase equivalent voltage phase-neutral
> Three-phase equivalent voltage phase-phase
> Three-phase equivalent current
> Three-phase active power
(positive=imported, negative=exported) Bidirectional
> Three-phase reactive power
(positive=imported) Bi-directional
Secondary measurements of
three-phase system
> Three-phase equivalent distorting power
> Three-phase equivalent apparent power
> Three-phase equivalent power factor
> Calculated neutral current
> Ideal Neutral-center star Voltage, N-O
> Frequency (measured on voltage input L1
Integrated Energy values of 2 inputs
> Imported active Energy, Bench 1
> Exported active Energy, Bench 1
> Imported Inductive Energy (Q1), Bench 1
> Exported Capacitive Energy (Q2), Bench 1
> Exported Inductive Energy (Q3), Bench 1
> Imported Capacitive Energy (Q4), Bench 1
> Imported active Energy, Bench 2
> Exported active Energy, Bench 2
> Imported Inductive Energy (Q1), Bench 2
> Exported Capacitive Energy (Q2), Bench 2
> Exported Inductive Energy (Q3), Bench 2
> Imported Capacitive Energy (Q4), Bench 2

產品規格

• 雙向電錶（進口/交付能源）
• 50個四象限真實值（RMS）測量
• 外殼96×96可以嵌入標準面板上，深度為65毫米（80毫米包括模塊）。
• 圖形顯示：3.5“液晶TFT，320x240像素，262k色，帶電阻式觸摸屏，清晰可讀的測量顯示。
• 圖形顯示最近3天的電壓，電流，功率和COSφ。
• 通過確認請求可將4個像限上的12個功率累加器設置為零
• 歐元用於吸收和輸送的能源
• 軟件TA和TV反轉功能
• 儀器內部的溫度探頭
• 時鐘和日曆
• 可選模塊由4個集電極開路輸入和2個Cleancontact輸出提供，Optomos（獨立參考質量）
• 可用的不同電流測量模塊：
  • 與5A TA
  • 帶羅戈夫斯基探頭，測量範圍：10至2000 A，Ø100 mm
  • 1V TA Calmp ON，Øint：24 mm，直到200A
• 串口：RS485
• 協議：Modbus和ETPRO。

目前可用的可選模塊

• • 電流測量模塊5A max（通過TA）
  • 電流測量模塊125÷2000A（通過Rogowski探頭）
  • 電流測量模塊TA 1V，箝位開
  • 模塊I / O：4個集電極開路輸入+ 2路Optomos輸出（乾淨觸點），獨立參考質量

List of Measurements

Direct measurements for single-phase
> Phase-neutral voltage L1-N
> Phase-neutral voltage L2-N
> Phase-neutral voltage L3-N
> Phase-phase voltage L1-L2
> Phase-phase voltage L2-L3
> Phase-phase voltage L3-L1
> Line current L1
> Line current L2
> Line current L3
Single-phase derived measurements
> Bi-directional active power L1 (positive=imported
(Q1 and Q4), negative=exported (Q2 and Q3)
> Bi-directional active power L2
(positive=imported, negative=exported)
> Bi-directional active power L3
(positive=imported, negative=exported)
> Bi-directional reactive power L1 (positive=imported
(Q1and Q4)
> Bi-directional reactive power L2 (positive=imported)
> Bi-directional reactive power L3 (positive=imported)
> Distorting power L1
(indication of presence of current harmonics)
> Distorting power L2
(indication of presence of current harmonics)
> Distorting power L3
(indication of presence of current harmonics)
> Apparent power L1
> Apparent power L2
> Apparent power L3
> Power factor L1
> Power factor L2
> Power factor L3

Main measurements of three-phase system
> Three-phase equivalent voltage phase-neutral
> Three-phase equivalent voltage phase-phase
> Three-phase equivalent current
> Three-phase active power
(positive=imported, negative=exported) Bidirectional
> Three-phase reactive power (positive=imported)
Bi-directional
Secondary measurements of three-phase
system
> Three-phase equivalent distorting power
> Three-phase equivalent apparent power
> Three-phase equivalent power factor
> Calculated neutral current
> Ideal Neutral-center star Voltage, N-O
> Frequency (measured on voltage input L)

Integrated Energy values of three-phase
system
> Imported active Energy, Bench 1
> Exported active Energy, Bench 1
> Imported Inductive Energy (Q1), Bench 1
> Exported Capacitive Energy (Q2), Bench 1
> Exported Inductive Energy (Q3), Bench 1
> Imported Capacitive Energy (Q4), Bench 1
> Imported active Energy, Bench 2
> Exported active Energy, Bench 2
> Imported Inductive Energy (Q1), Bench 2
> Exported Capacitive Energy (Q2), Bench 2
> Exported Inductive Energy (Q3), Bench 2
> Imported Capacitive Energy (Q4), Bench 2

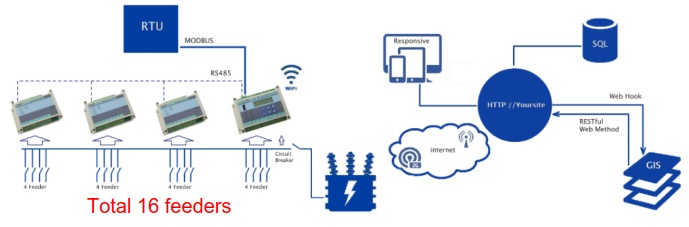

W1030是一個強大的功率分析儀，能夠測量和記錄主斷路器
和4個連接的饋線的電氣參數。使加上3個 W1024模塊可將饋
線數量擴展到16個3相的饋線。
具有測量和記錄所有饋線的電壓，電流，中性線電流，功率
因數，有功，無功和視在功率，kWH，kVARH。
該設備可以測量和記錄2到15電壓，電流和中性線電流諧
波，主斷路器的電壓THD和電流THD。同時記錄環境溫度 和
變壓器溫度將 有助於監測和分析諧波負載的影響。

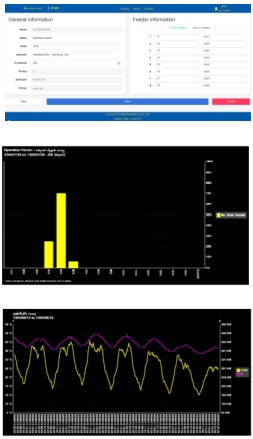

所有記錄都存儲在內部存儲器4GB中，可經由USB下載或使
用互聯網傳輸到 服務器。通過移動網絡Wifi / RS485傳送到服務器的測
量參數使得可以監視圖表和 數據，以便計算損耗減少，負
載平衡，負載曲線，PF 等。

W1020是一個強大的功率分析儀，能夠測量和記錄主斷路器
和4個連接的饋線的電氣參數。使加上3個 W1024模塊可將饋
線數量擴展到16個3相的饋線。
具有測量和記錄所有饋線的電壓，電流，中性線電流，功率
因數，有功，無功和視在功率，kWH，kVARH。
該設備可以測量和記錄2到15電壓，電流和中性線電流諧
波，主斷路器的電壓THD和電流THD。同時記錄環境溫度 和
變壓器溫度將 有助於監測和分析諧波負載的影響。
所有記錄都存儲在內部存儲器4GB中，可經由USB下載或使
用互聯網傳輸到 服務器。通過移動網絡Wifi / RS485傳送到服務器的測量
參數使得可以監視圖表和 數據，以便計算損耗減少，負載平
衡，負載曲線，PF 等。



Attached: Multi-Feeder Power Analyzer -YYTL CH.pdf

Attached: W106 power analyzer datasheet YYTL.pdf

ME631 可接羅氏線圈mV/kA  或 Split Core CT 0.333VAC的信號, 電表可設定

Attached: ME631V3 data sheet YYTL.pdf

Attached: ME432 datasheet by YYTL 20161128.pdf

 Suit for voltage under 330V (L-N)/570V(L-L) (direct)
 Used for 4x3 phase or 12x1 phase circuit AC measuring
 Auto-distinguish mix connection of three phase and single phase, different circuit
can be set to different current
 Ture-RMS measuring parameter for U, I, P, Q, S, PF, F, kWh(Imp. & Exp.), kvarh
(Imp. & Exp.), Demand
 TOU, 4 tariffs, 8 time period in 24 hours
 Memory data per 15 min., Max. Memory 40days data
 SOE (event log) Record
 Support 100mA rated current input, CT primary up to 5000A
 LED light indicates Pulse Output, Run status and Communication status
 Standard 35mm DIN rail Mount
 RS485 port, MODBUS-RTU protocol

Attached: PMAC201HW Data Sheet (for 100mA) V4.0.pdf
Attached: PILOT PMAC211 Mulit-Circuit Energy Meter V1.0.pdf

 Measuring: 1 main circuit + 42 branch circuits
 DI/DO: 4 status inputs (dry contact) , 2 relay outputs, 1 pulse output
 Settable Pre-Alarm function:
Main circuit: Alarm for voltage, current, current unbalance
(optional alarm for leakage current/ temperature alarm)
Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit)
 Communication: RS485, support Modbus-RTU protocol
 Phase sequence of branch circuit is programmable
 Optional CT input for branch circuit: 50A, 100A, 200A
 Settable wiring for branch circuit: Either single phase or 3 phase
 Historical kWh record: kWh yearly consumption of last 10 years,
kWh monthly consumption of last 12 months\
Attached: PMAC202 AC BCPM Data Sheet V4.0.pdf
