商品介紹

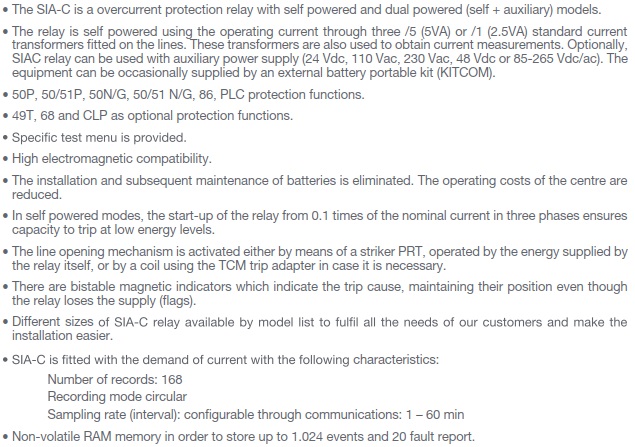

FANOX SIA-C 可前抽出式CO+LCO保護電驛

SIA-C 可前抽出式CO+LCO保護電驛


ˊ

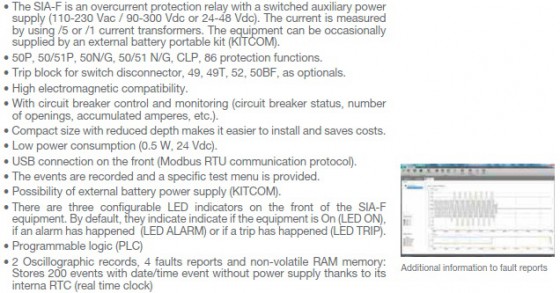

FANOX SIL-A/ SIA-F 50/51/50N/51N 四相一體

FANOX SIL-A/ SIA-F 50/51/50N/51N 四相一體

FANOX Relay Series and Function Table

Attached: FANOX Protection functions summary.pdf

FANOX SIA-F / SIL-A  Feeder Protection 50/51/50N/51N




FANOX SIL-B 十相一體保護電驛

FANOX SIL-B十相一體/馬達保護電驛: 27/59/50/51/50N/51N/49/46/81/59N/67/67N/74TCS

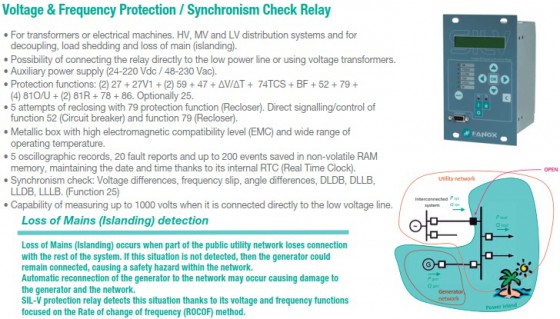

FANOX SILV UV+OV 六相一體

FANOX SILV UV+OV 六相一體

FANOX SIL-V UV+UV Protection Relay 27/59/81L/81H/25/74TCS



FANOX RMU 用保護電驛 SIA Series

FANOX RMU 用保護電驛 SIA Series
SELF & DUAL POWERED (SELF+AUX)

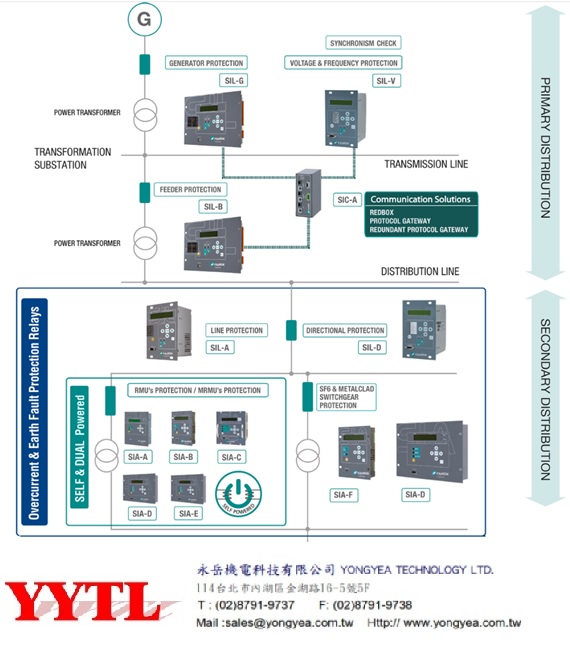

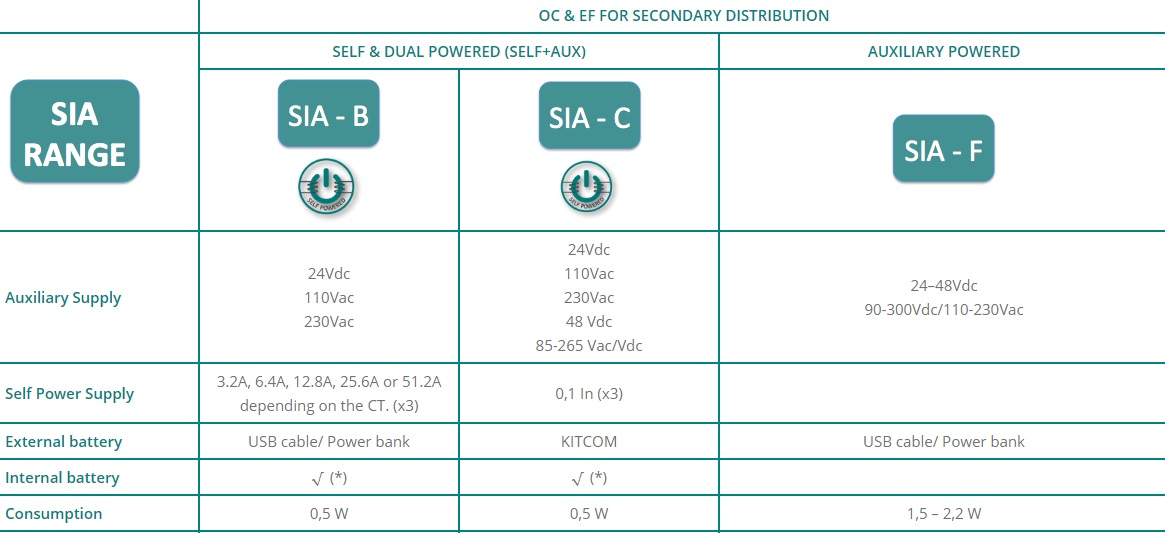

Secondary Distribution. RMU SELF-POWERED Protection Relays – SIA RANGE

Overcurrent & Earth Fault Protection Relays. The most revolutionary solution for RMU’s (Ring Main Unit) protection. SIA relays are designed to protect the Secondary Transformers and Distribution Substations of Electrical Networks.

Main advantages over other brands:

  • The relays are self powered by the operating current. No batteries, chargers or any other external power sources are required. This means that the maintenance of transmission and distribution centers is heavily reduced.
  • High electromagnetic compatibility makes FANOX relays the safest in the market. KEMA Certification proves it.
    5 years warranty al least.
  • Standard CTs /1A or /5A can be used saving money.
  • The energy available to trip the striker is the highest in the market: 24V – 135mJ.
  • Possibility of SCADA communication for all relays. Very intuitive menu, extremely easy to adjust.
  • Our flexible design offers solutions for all the applications worldwide: coils,strikers, dual-powered installations…
  • No one in the market gives more quality and specifications with so competitive prices.

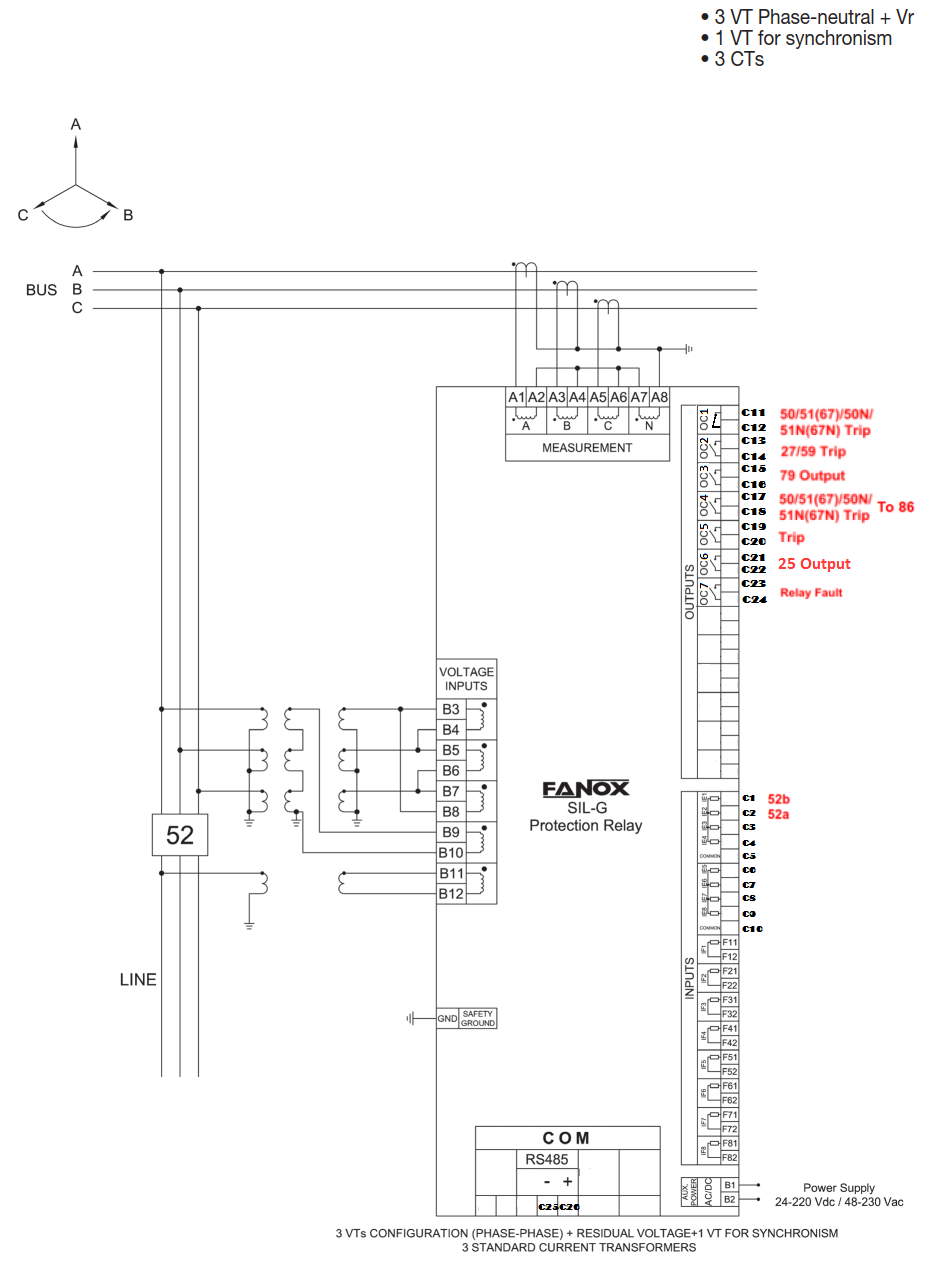

FANOX SIL-G 發電機保護電驛

FANOX SIL-G 發電機保護電驛

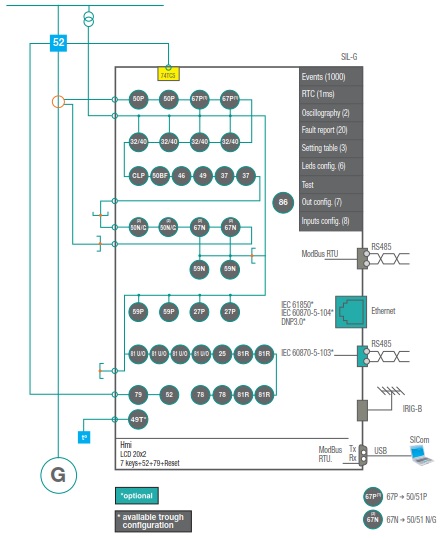

Protection Functions :

81R (4), 78 (2), 81 U/O (4), 27P, 32/4 (4), 59P (2), 59N (2), 25, 79, 50P (2), 50N/G
(2), 67P (2), 67N (2), 46, 50BF, 52, 49, 86, Cold Load Pick-up, 49T, 74TCS, 37
and IRIG-B.

FANOX 6E/3E Motor 保護電驛

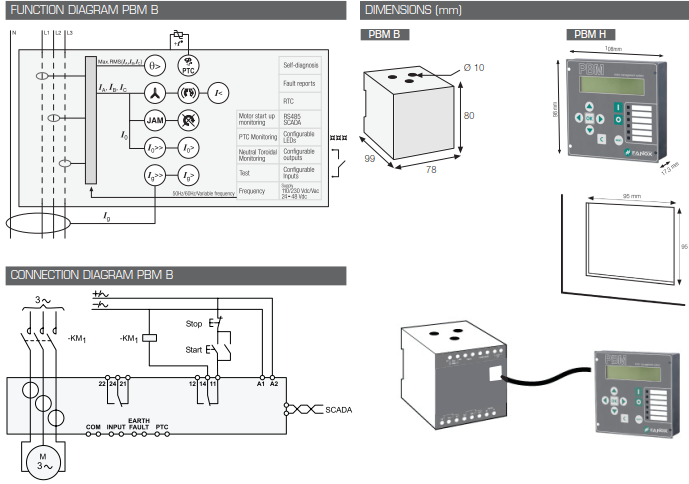

PBMB+PBMH

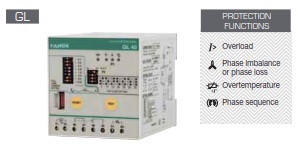

GL

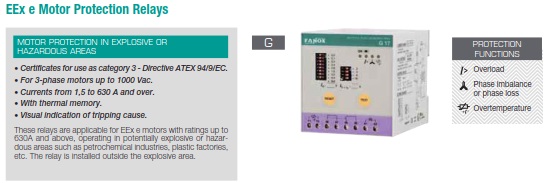

EEx e Motor


PUMP

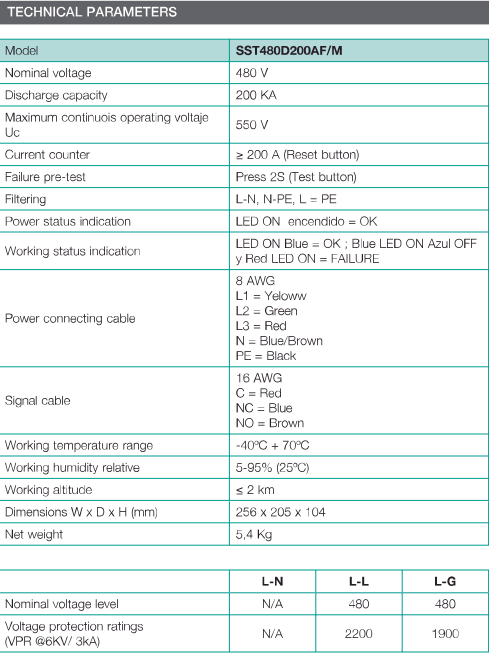

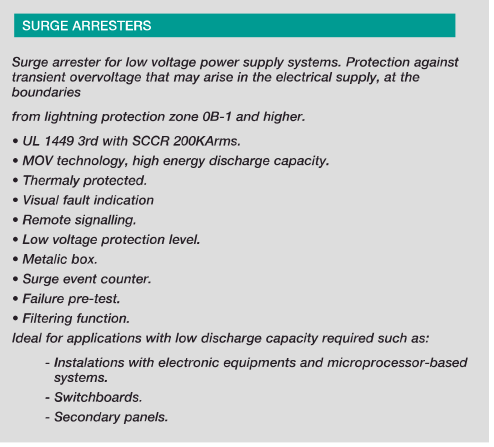

FANOX 200kA SST 突波吸收器

FANOX 200kA SST 突波吸收器
25 同步電驛及發電機Speed控制

25 同步電驛及發電機Speed控制

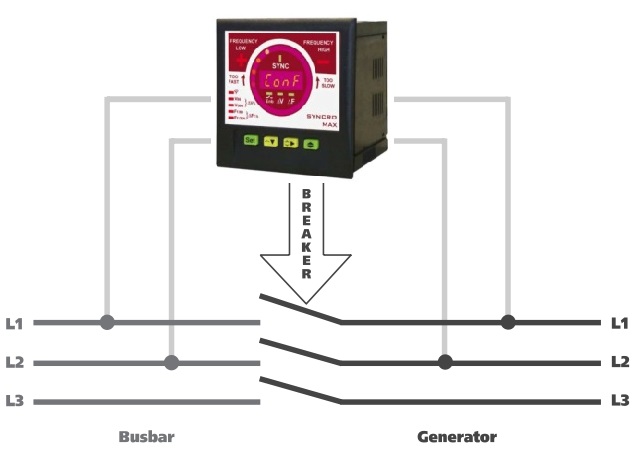

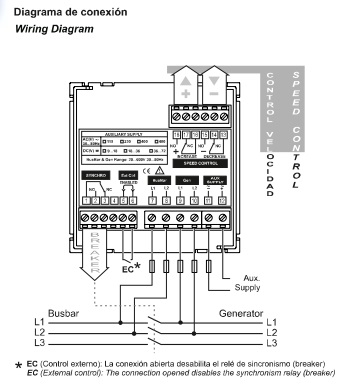

SYNCROMAX :  僅25  功能
SYNCROMAX PID :  25 + Speed  control

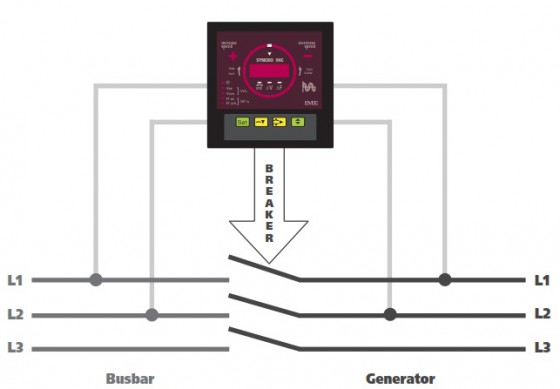

IME 25同步電驛

IME 25同步電驛

25同步電驛

ENERGOTEST ARC PROTECTION ZL1

ENERGOTEST ARC PROTECTION ZL1

ENERGOTEST ARC PROTECTION ZL1

Basic realy PL-1 futures:

  • sends tripping signal (3 switching contacts);
  • detect voltage drop on switchgear's bus-bars;
  • gets an information about input state of fiber optic loops;
  • generates alarm signals

Optical fiber loops

The main function of optical fiber loops is detection of an arc fault light. This loops are not covered, and they are using the effect of side penetration of light. The maximal length of one loop is 60m (optionally 100m). Each relay has two loops.

ENERGOTEST ARC PROTECTION ZL4

ENERGOTEST ARC PROTECTION ZL4

ENERGOTEST ARC PROTECTION ZL4

ZL-4 is on innovative protection with module structure - central unit and bay units (max. 99 for one central unit). The communication between units is executed by fast CAN bus. Together with CAN bus, power supply circuits are distributed. Functions such as voltage measurement and power supply are centrally grouped. In new construction a lot of proven solutions, like front light detectors have been used. The key advantage of ZL-4 is the possibility of selective tripping of bays in witch the arc fault has occurred. The protection is dedicated to the modern closed switchgears.



The idea of ZL-4 installation in the switchgear

The signal from voltage measurement bay is leaded to the protection relay (under voltage condition). Central unit is connected with bay units by CAN bus. Each bay unit has up to four front detectors placed in different sectors of protected switchgear bay. In case of detection arc light in first zone, the whole switchgear is tripped off. In case of detection arc light in second zone, only this bay is tripped off, in which the light has been detected.

CAMTO弧光偵測電驛(系統) Arc Detection Relay

Major highlights of the new ARC-detector unit from Camto A/S type: 601E0100 & 601E0900:



 Input voltage: 9-32VDC (601E0100) 110Vac/230Vac (601E0900)
 Four individual detector zones
 Unlimited numbers of sensors for each sensor zone
 The possibility of series connection of sensors in the same zone (savings on sensor cables
and installation costs)
 100% self-test feature option; even tests of the optical parts are included
 Pre-detection of small levels of fault
 Simple serie code output for event status (PLC interface)
 Trip coil outputs as latched and open contacts
 Combination of sensor types like smoke, ARC, humidity, temperature and levels are
available
 Standard DIN unit with spring terminals
 Realtime eventlog with time and date information for fault status

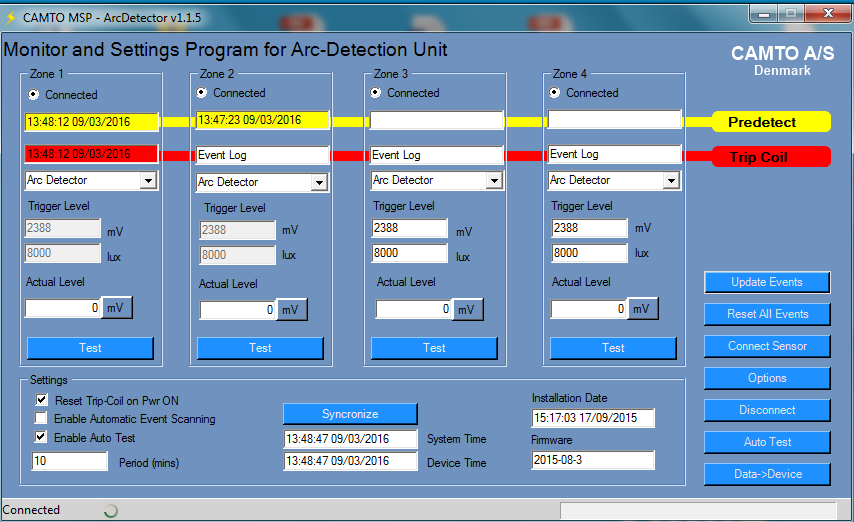

 Simple PC interface (MSP) for monitor and setting use
 Low unit and installation costs

SEL 710 Motor Protection Relay


Motor Protection Relay 27/59/46/49/50/51/47/50N/66


Attached: 710_DS_20150130.pdf

SEL-849 Motor Protection Relay

SEL-849 Motor Protection Relay
Attached: 849_DS_20140703.pdf

10 years warranty

SEL-787 87T Transformer Protection Relay

SEL-787 Transformer Protection Relay : 87T/50/51/50N/51N
Attached: 787_DS_20150130.pdf

10 years warranty

SEL 487B 87B保護電驛

The SEL-487B Relay provides bus current differential protection, circuit breaker failure protection, and
backup overcurrent protection. The relay has 18 analog current inputs and three analog voltage inputs. For
buses with no more than six terminals, use one SEL-487B in a single-relay application. For buses with seven
to nine terminals, use two SEL-487B relays. For buses with up to 18 terminals, use three SEL-487B relays;
each relay provides up to six dedicated zones of protection.

SEL-751A Feeder Protection Relay

Feeder Protection Relay  : 50/51/50N/51N/27/59/79/81/25/32/60
10 years warranty

Attached: 751A_DS_20131025.pdf

27/59/50/51/50N/51N 設定範圍表
Attached:
SEL 2759505150N51N curve and setting.pdf

SEL451-- Fast Motor Bus Transfer System (HBT)

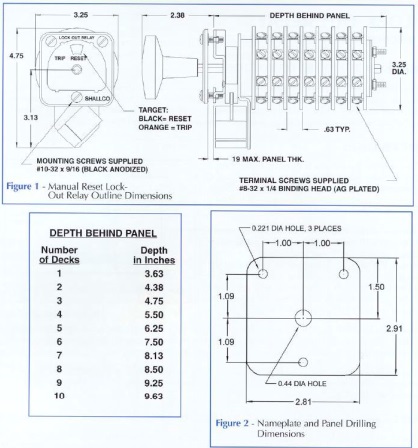

Shallco 86 閉鎖電驛

Lock out relay 86 Relays (閉鎖電驛) Manual Reset. Contacts : From 2a2b to 20a20b. Typical operating time < 7 ms.

Attached: 永岳 Sallco Lock-Out%20Relays.pdf

ES LOR 86 Relay

ElectroSwitch Lock-out 86 Relays (閉鎖電驛) Manual Reset. Contacts : From 2a2b to 20a20b. Typical operating time : 8 ms

ES 86 Electrical Reset

ElectroSwitch Electrical Self Reset. Contacts : From 2a2b to 20a+20b
