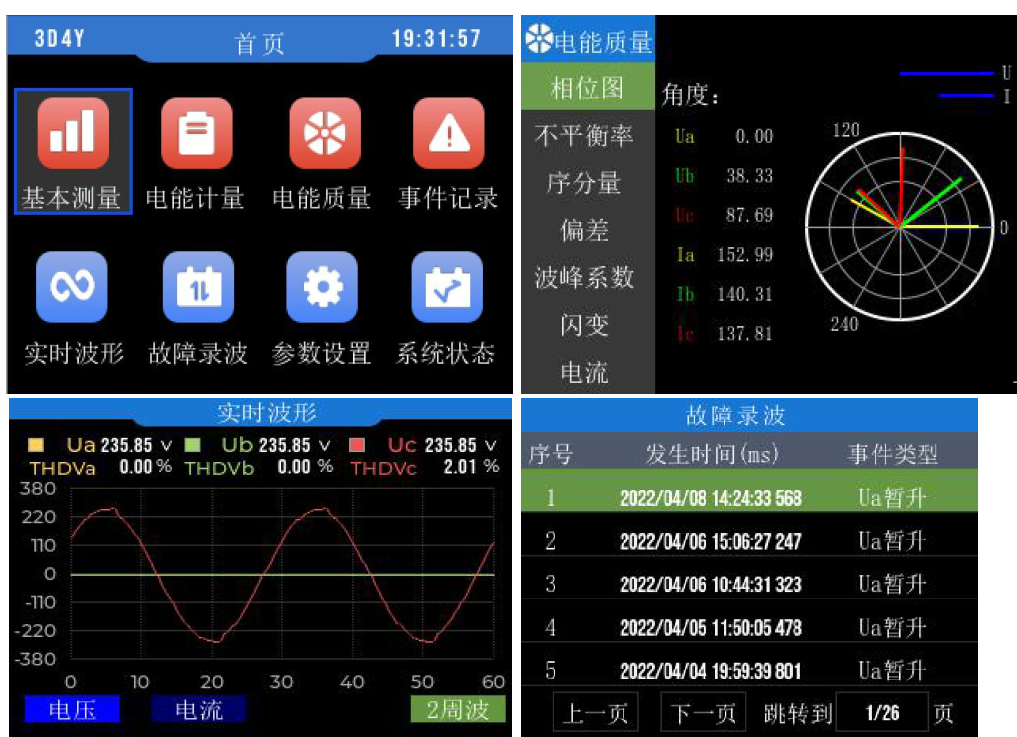

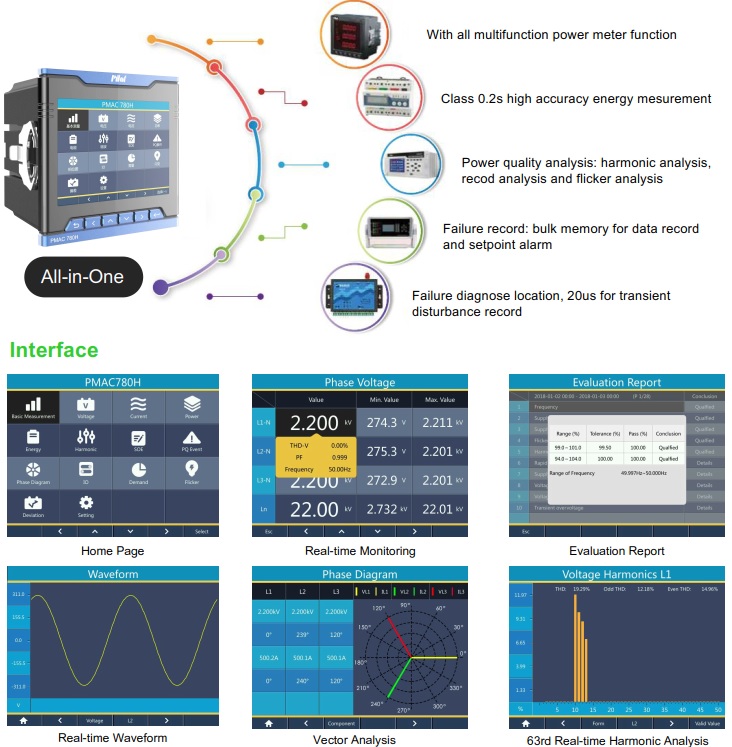

PILOT 780H高階多功能電力品質管理系統

PILOT 780H高階多功能電力品質管理系統


Ø電能質量管理系統
Ø諧波分析
Ø能源供應故障分析
Ø電壓凹陷源位置
Ø瞬態干擾位置

主功能
ØClassA電能質量測量:諧波和間諧波,電壓偏差,頻率偏差,不平衡,波動和閃爍,瞬態干擾,EN50160統計
Ø0.2s級精度:諧波,基波,次諧波能量
Ø高分辨率故障記錄:支持1024點/週期,最小間隔干擾記錄為20us,8GB 記憶體
Ø故障診斷位置:支持電壓暫降源,諧波源,閃爍源,非對稱源位置和電源故障類型診斷

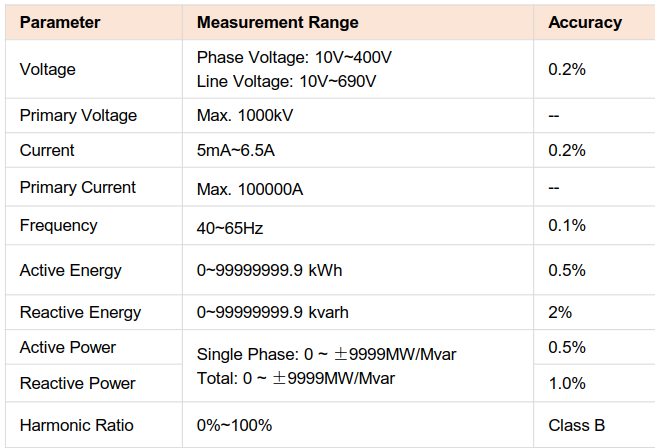

Ø完整的實時數據測量

PILOT 770多功能電錶

PILOT 4 迴路多功能多迴路量測電錶

PILOT  4 迴路多功能多迴路量測電錶 可用於MCC盤,負載中心

 Suit for voltage under 330V (L-N)/570V(L-L) (direct)
 Used for 4x3 phase or 12x1 phase circuit AC measuring
 Auto-distinguish mix connection of three phase and single phase, different circuit
can be set to different current
 Ture-RMS measuring parameter for U, I, P, Q, S, PF, F, kWh(Imp. & Exp.), kvarh
(Imp. & Exp.), Demand
 TOU, 4 tariffs, 8 time period in 24 hours
 Memory data per 15 min., Max. Memory 40days data
 SOE (event log) Record
 Support 100mA rated current input, CT primary up to 5000A
 LED light indicates Pulse Output, Run status and Communication status
 Standard 35mm DIN rail Mount
 RS485 port, MODBUS-RTU protocol

Attached: PMAC201HW Data Sheet (for 100mA) V4.0.pdf
Attached: PILOT PMAC211 Mulit-Circuit Energy Meter V1.0.pdf

iPDU (Intelligent Power Distribution Unit) for Data Center

Intelligent Power Distribution Unit
PMAC Series AC iPDU for Data Center

Attached: PMAC Series AC iPDU for Data Center V3.0.pdf

Specification
 Incoming circuit : 3-phase AC power
 Outgoing circuit : 21, 42, 63...84 Branch circuit
 7’’ Color LCD Touch screen HMI
 Low-low and high-high current alarm and data log
 Installed Monitored SPD surge protection
 Hot-plug system for MCB online maintenance
 Monitorting Main and Branch circuit ON/OFF status
 Class 1.0 Energy measurement for Energy Billing
 Support communication to PILOT® DCIM or other system




PILOT 42迴路多功能多迴路量測電錶

PILOT 42迴路多功能多迴路量測電錶 , 可用於負載中心,如MCC, Datacenter

 Measuring: 1 main circuit + 42 branch circuits
 DI/DO: 4 status inputs (dry contact) , 2 relay outputs, 1 pulse output
 Settable Pre-Alarm function:
Main circuit: Alarm for voltage, current, current unbalance
(optional alarm for leakage current/ temperature alarm)
Branch circuit: Alarm for current (lo-lo-limit, lo-limit, hi-limit, hi-hi-limit)
 Communication: RS485, support Modbus-RTU protocol
 Phase sequence of branch circuit is programmable
 Optional CT input for branch circuit: 50A, 100A, 200A
 Settable wiring for branch circuit: Either single phase or 3 phase
 Historical kWh record: kWh yearly consumption of last 10 years,
kWh monthly consumption of last 12 months\
Attached: PMAC202 AC BCPM Data Sheet V4.0.pdf
